Sequoia by Rattan Ebikes

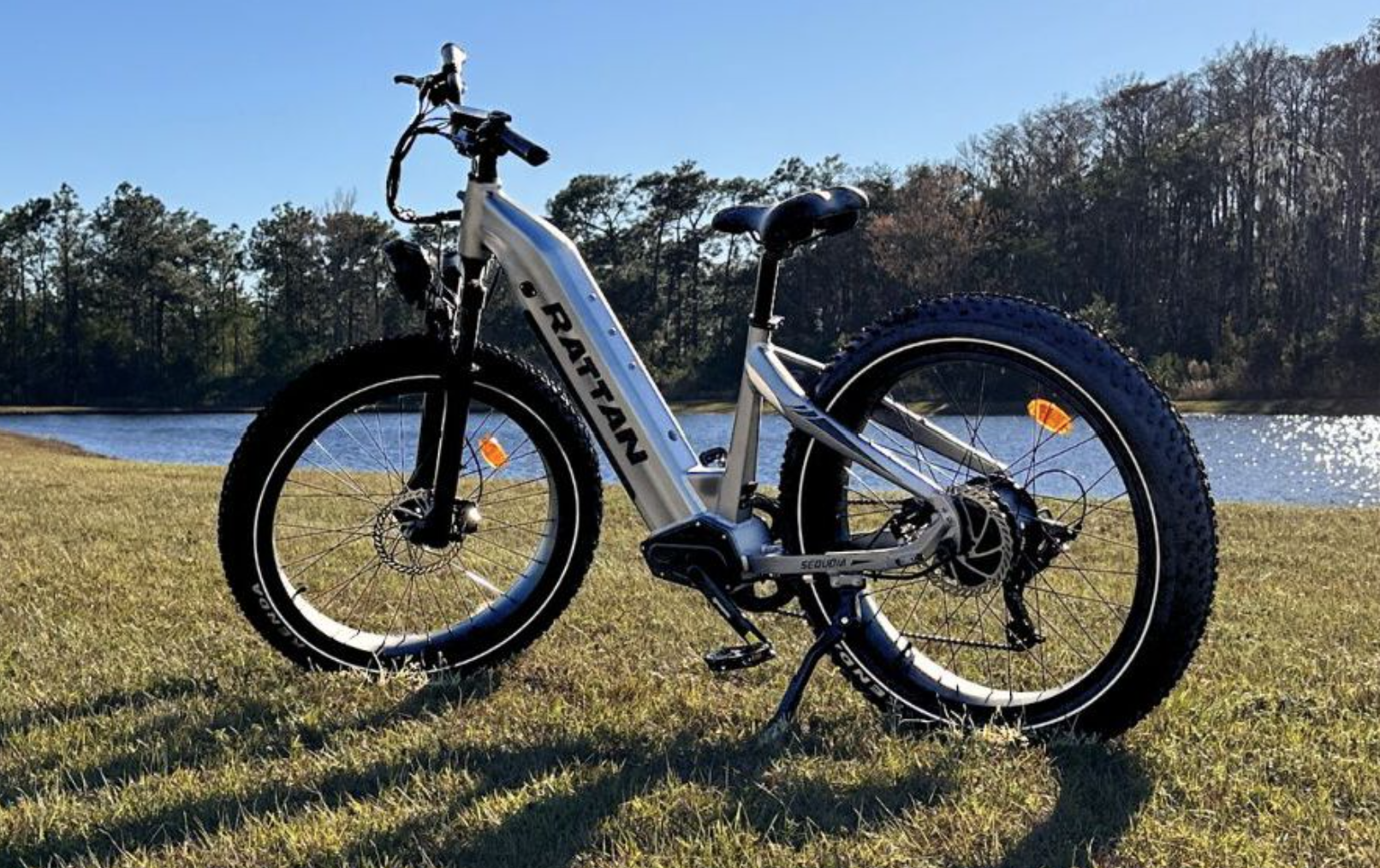

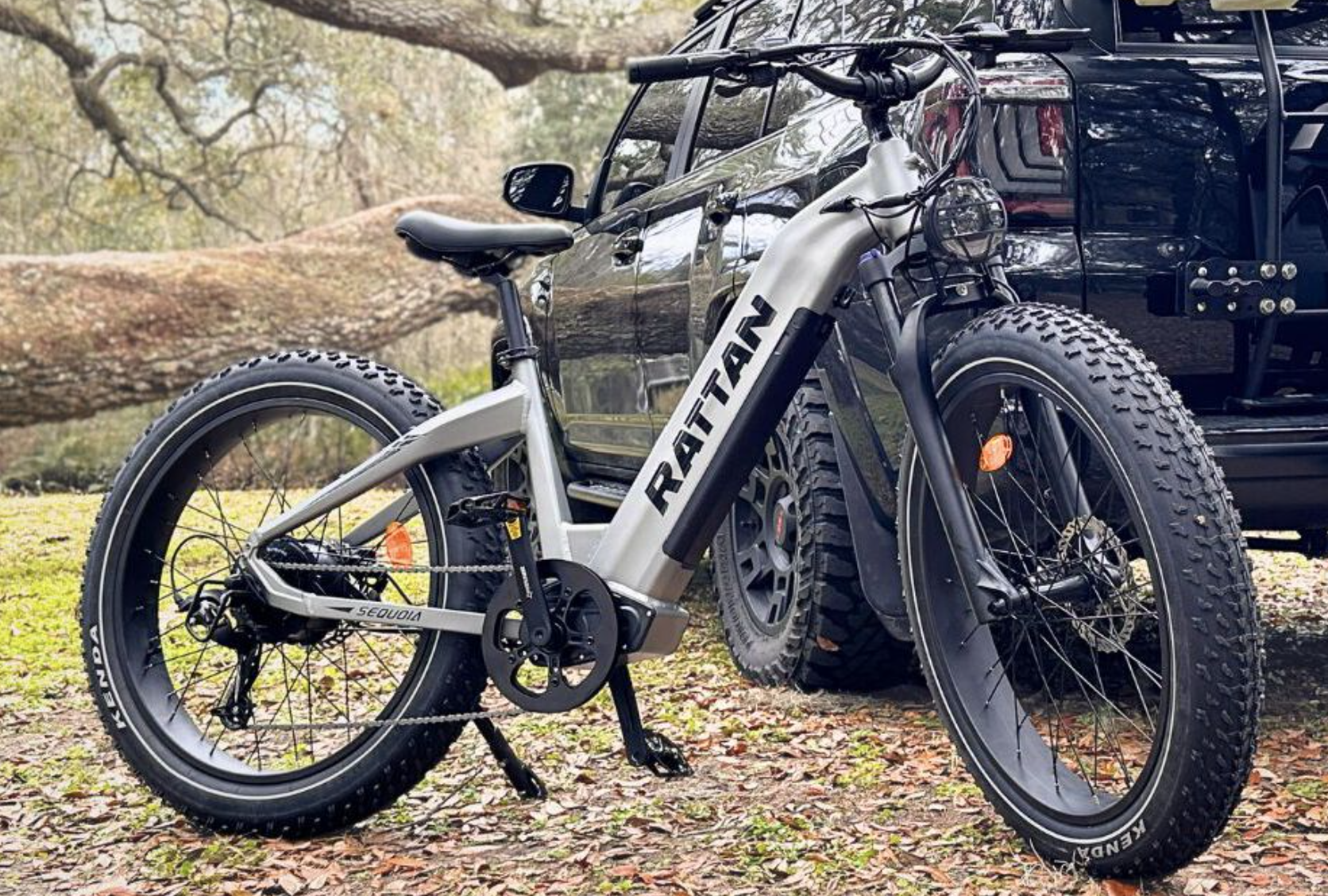

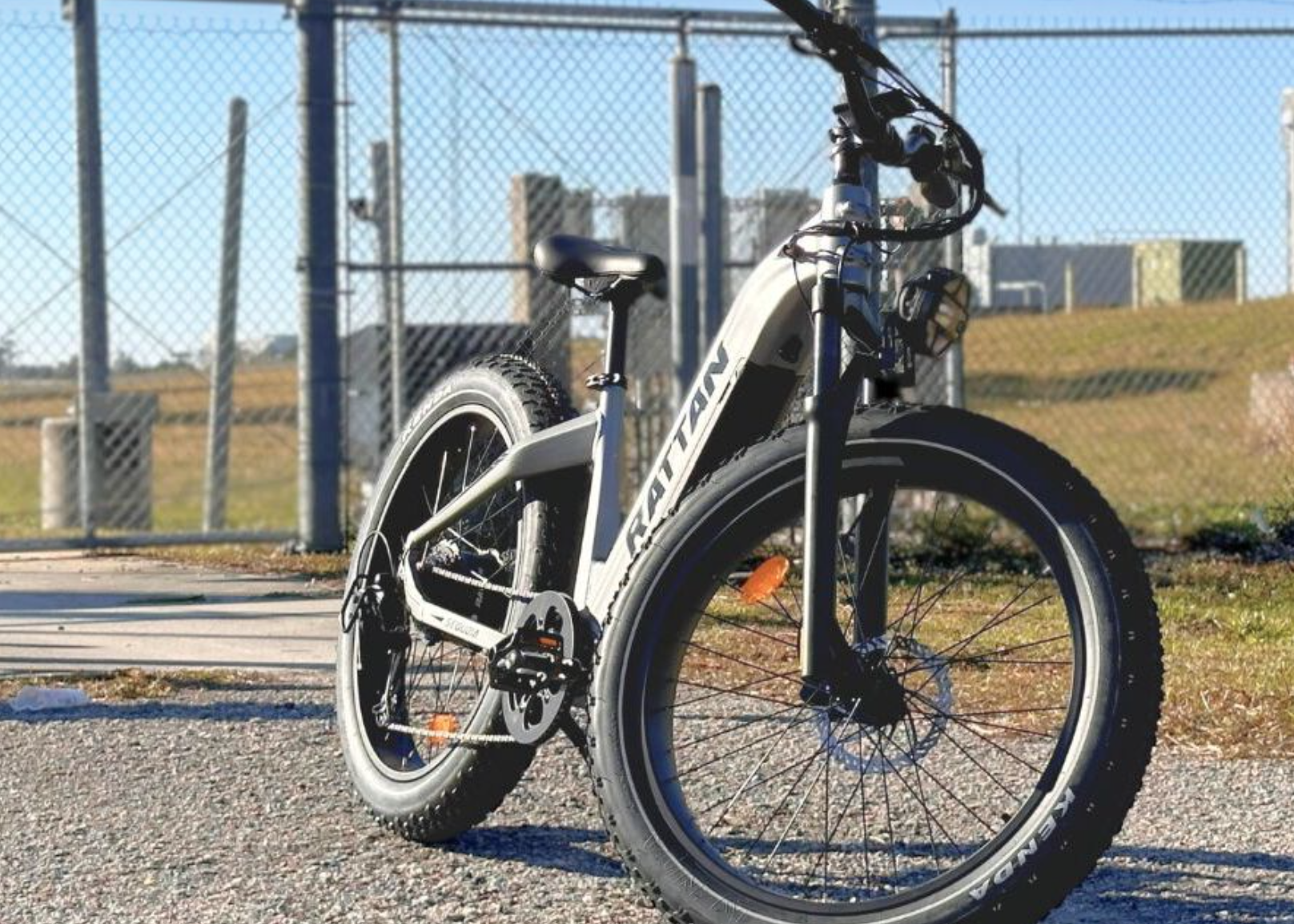

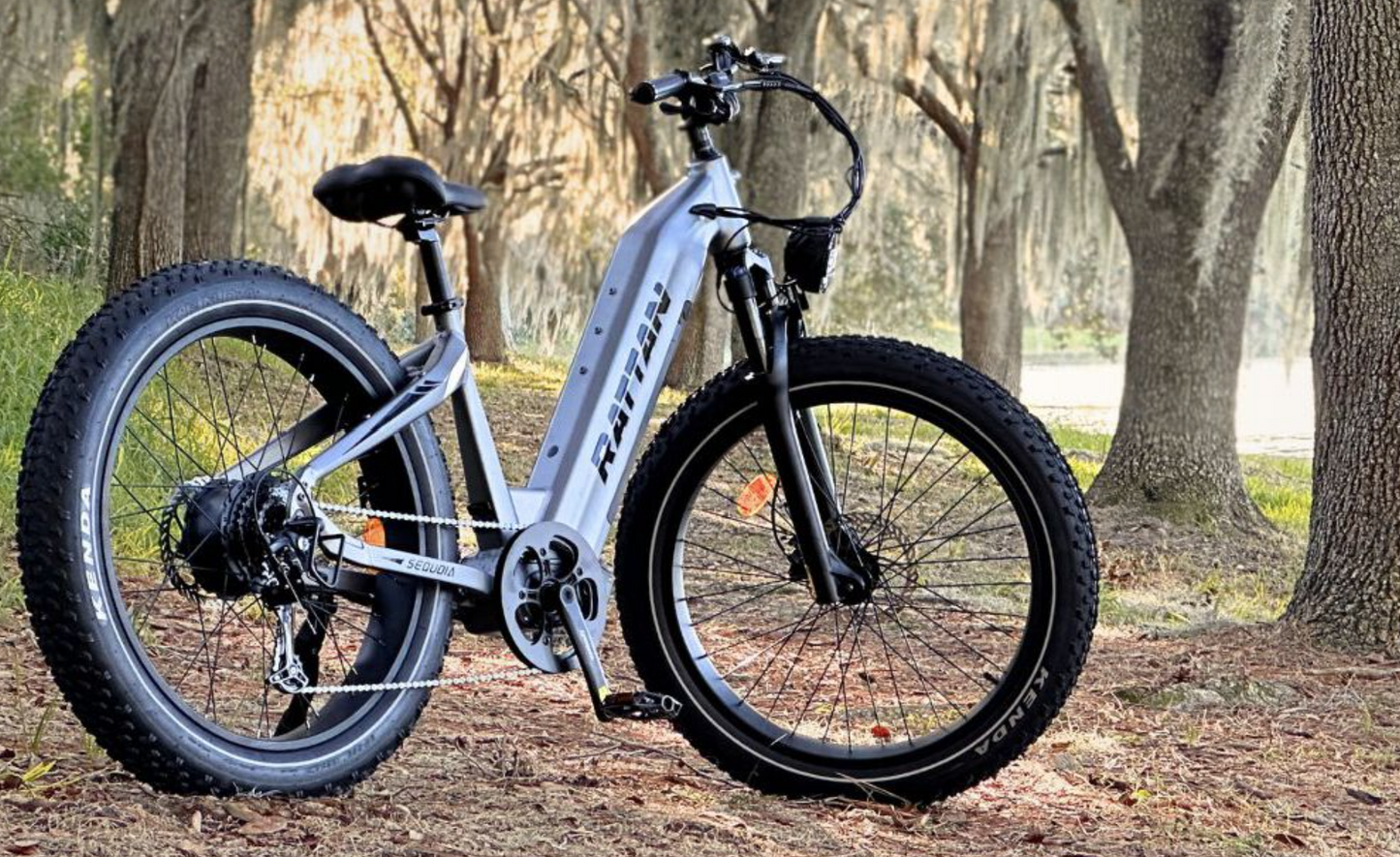

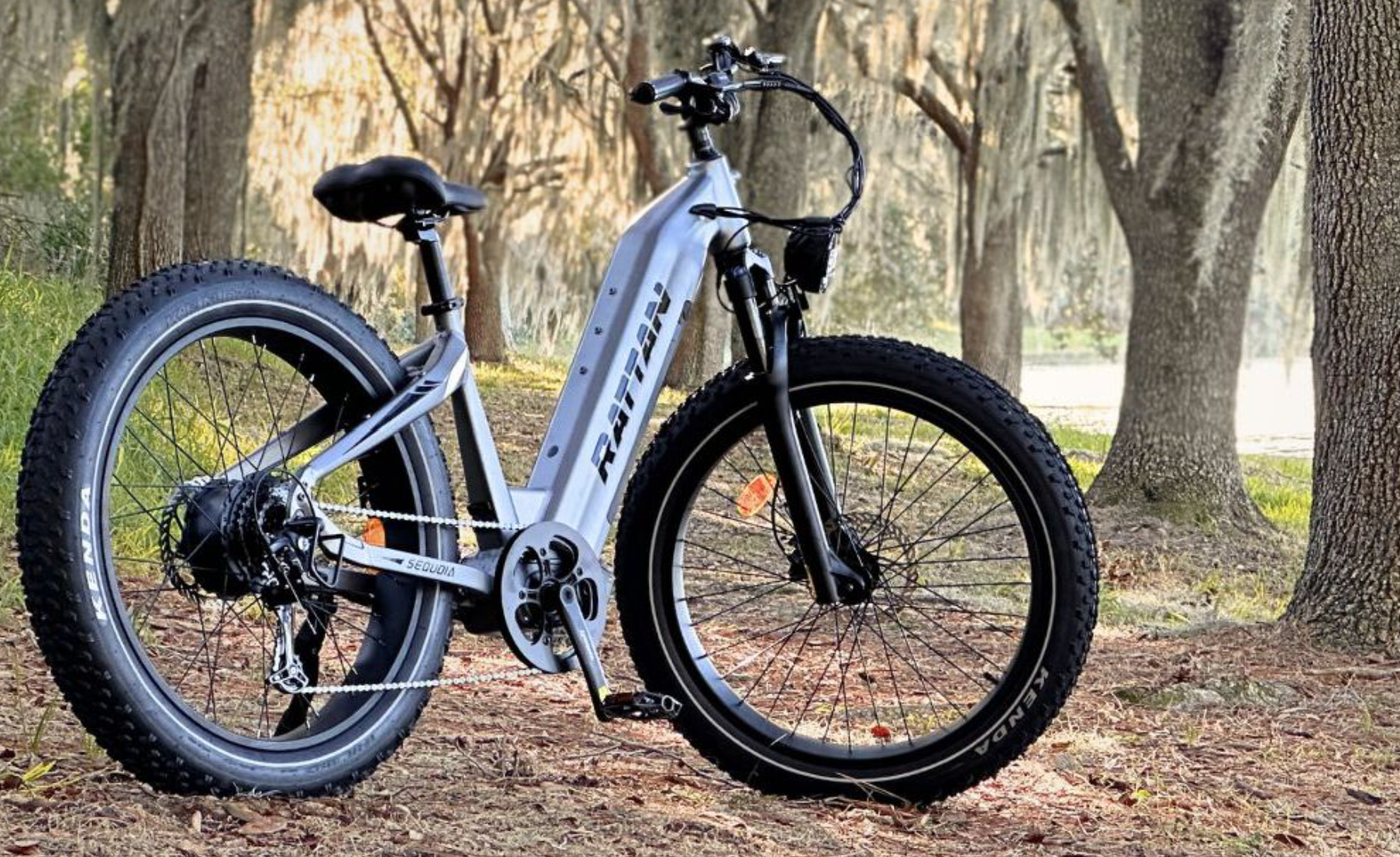

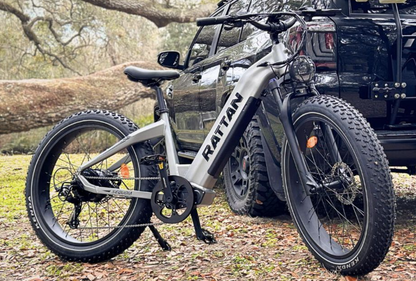

Meet your new Rattan Sequoia

The Step-Through frame features a clean, accessible geometry built for effortless mounting, stable handling, and plenty of space for frame accessories. Get ready to break free, expand your horizons, and discover new trails with the ultimate blend of comfort and ease.

Industry-Leading Electrical Safety

UL 2849 Certified: This is the gold standard for eBike electrical systems. It means the entire drive train—including the motor, computer, and charger—has undergone rigorous testing to prevent electrical failures and fire risks.

UL Certified Battery: This specifically covers the high-performance lithium-ion battery. It ensures the "heart" of your bike is protected against overcharging, short-circuiting, and impact, providing a safer charging experience in your home or garage.

Advanced Weather & Waterproofing

IPX4 Certified System: Engineered to confidently handle the elements, the Rattan Sequoia features comprehensive water protection designed to withstand wet road splashes, damp weather, and light rain.

Battery Protection: The critical battery casing features a secure, semi-integrated design that keeps the high-capacity Samsung cells shielded from road debris and sudden damp conditions while maintaining a sleek profile.

Meet your new ride:

80 to 100 Miles of Pedal Assist Range (or up to 150+ Miles with Dual Batteries): A 960 Wh, 20 Ah Samsung battery powers your daily commutes or extended adventures. Think of Watt-hours as being the size of your gas tank. (The average mid-range eBike has around 500 to 650 Wh).

28 MPH Max Speed

Watts with the Torque? The Rattan Sequoia is propelled by a robust 48V, 750W brushless rear hub motor that serves up a massive 1500W of peak power and 80 Nm of torque. This heavy-duty power configuration means you can effortlessly flatten steep inclines, accelerate smoothly from a dead stop, and handle any trail with ease.

Unlike standard e-bikes, the Rattan Sequoia utilizes an advanced, precision torque sensor system paired with 3 riding modes and 5 levels of PAS. By measuring exactly how hard you are pedaling, the motor delivers a remarkably natural, lag-free power boost that optimizes efficiency—yielding up to an 80-mile pedal-assist range on a single battery. A seamless thumb throttle provides an instant burst of pure power whenever you need it.

Out of the box, the bike is programmed to comply with local laws but can be easily configured to unlock its Class 3 capabilities up to a top speed of 28 MPH. This flexibility allows you to seamlessly configure the electronics to match your local riding rules, giving you the ability to switch the bike operational modes.

What Class Rating does the Rattan Sequoia have and why should I care?

This premium eBike offers the ultimate flexibility, capable of switching between operational modes up to Class 3. You can easily monitor and manage its full potential through the color LCD control panel that includes wireless mobile connection and app synchronization.

Understanding the Class Ratings: Why Versatility Matters

Class I (Pedal Assist Only): The motor provides assistance only when you are pedaling and ceases to provide help once you reach 20 MPH. This mode is often required for specific mountain trails or multi-use paths that prohibit throttles.

Class II (Throttle & Pedal Assist): The bike includes a throttle that can propel you up to 20 MPH without any pedaling required, perfect for effortless cruising or getting a boost from a standstill.

Class III (High Speed): This unlocks the eBike's top speed of 28 MPH via pedal assist. It is the ideal setting for commuters who need to keep pace with city traffic and cover long distances quickly.

Understanding local and state ebike regulations is essential because laws vary significantly regarding where different class types are permitted, and staying informed ensures you can enjoy the full range of "freedom" while remaining legally compliant and safe on every road and trail.

Battery and Charger

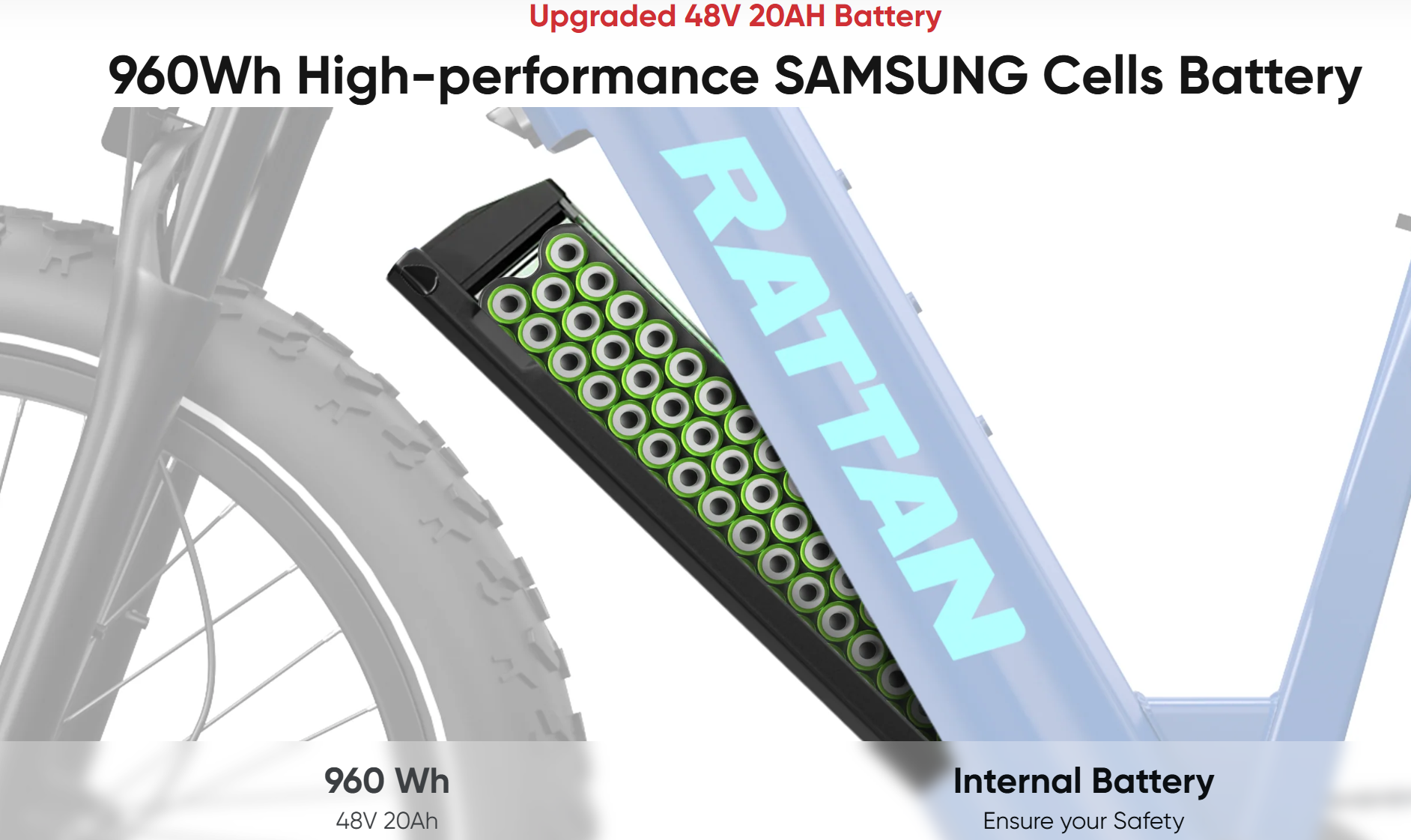

The Rattan Sequoia is powered by a high-performance 48V 20Ah semi-integrated battery pack built with premium, automotive-grade Samsung 21700 cells. Engineered for extreme safety, reliability, and longevity, the battery pack provides substantial endurance for long-distance journeys. To minimize your downtime between rides, the system includes a powerful 4.5A fast charger, allowing you to completely replenish the high-capacity cells in just 4 to 5 hours.

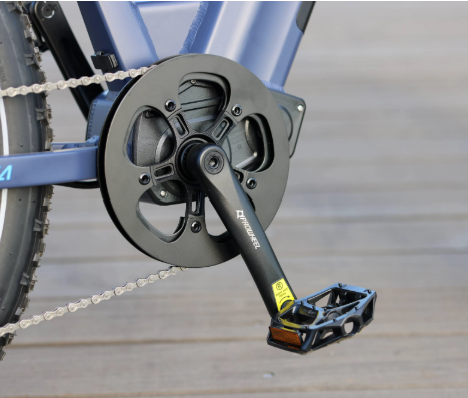

Shimano 8-Speed Gears

The Rattan Sequoia features a high-performance Shimano 8-speed drivetrain engineered for smooth, reliable shifting across varied terrains. The mechanical system centers around a premium rear derailleur and matching shift lever that effortlessly transitions between gears with seamless precision. This gearing configuration provides the perfect mechanical range to efficiently tackle steep climbs and maintain comfortable pedaling cadences at top speeds.

Hydraulic Disc Brakes

The Rattan Sequoia is equipped with a premium front and rear 180mm hydraulic disc braking system engineered for maximum stopping power and precise control. This setup offers superior heat dissipation and exceptional braking leverage under heavy loads or high speeds, delivering a rapid braking response time under 0.1 seconds. The moment you pull the levers, the system ensures rapid, safe, and reliable stops in any weather or terrain condition.

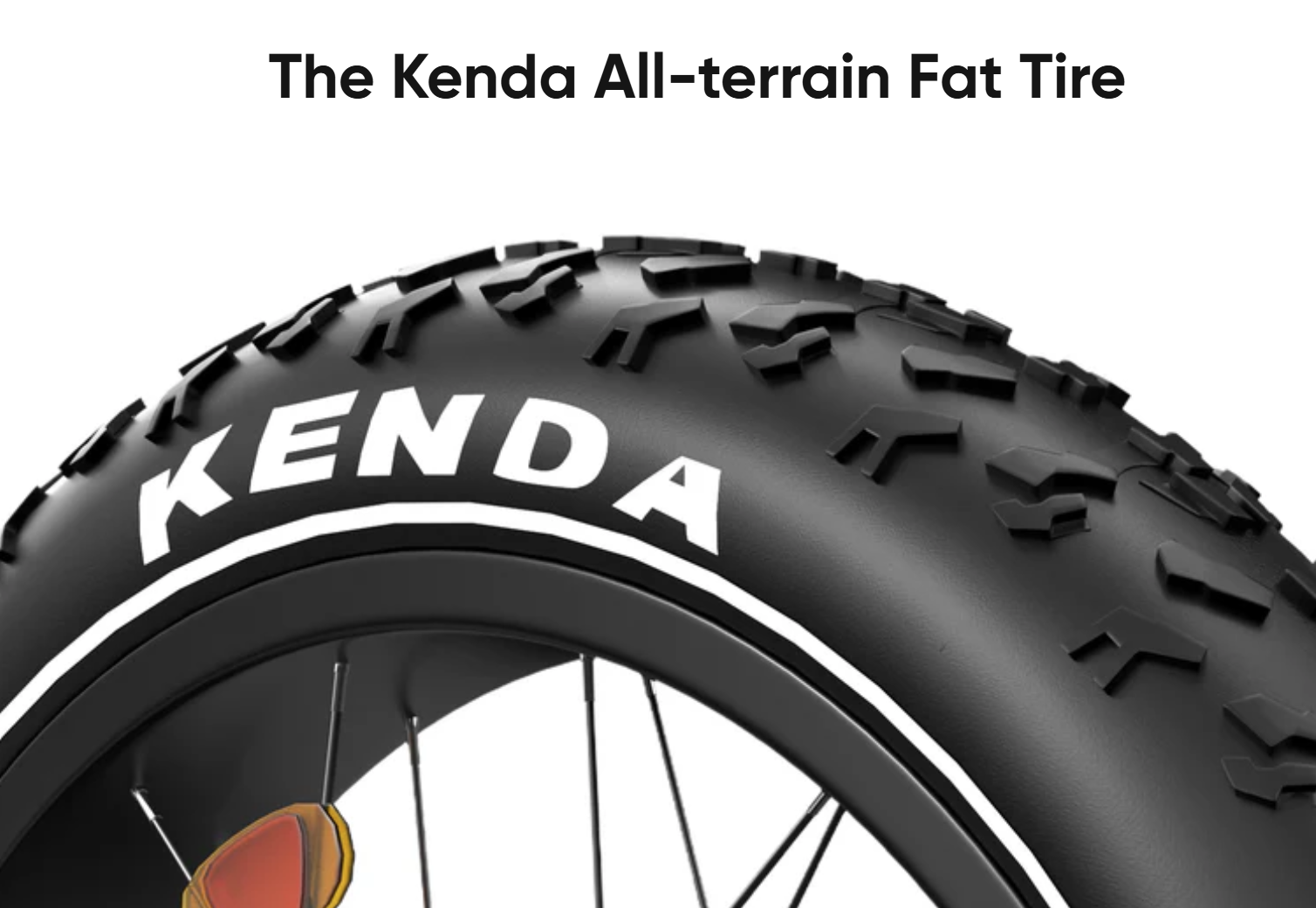

26" x 4" Fat Tires

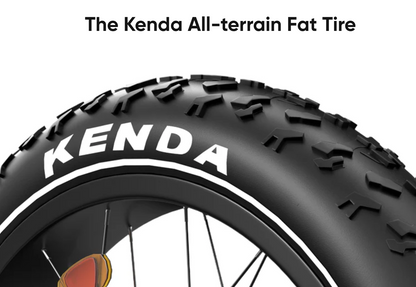

The Rattan Sequoia comes factory-equipped with premium 26" x 4.0" Kenda fat tires. Engineered specifically for high-performance off-roading, these tires feature an aggressive tread pattern designed to bite deep into loose terrain, snow, sand, and mud while maintaining excellent rollover capability and top-end stability on hardpacked surfaces. The massive footprint provides an incredibly stable, "planted" feel that absorbs obstacles like roots and potholes with ease.

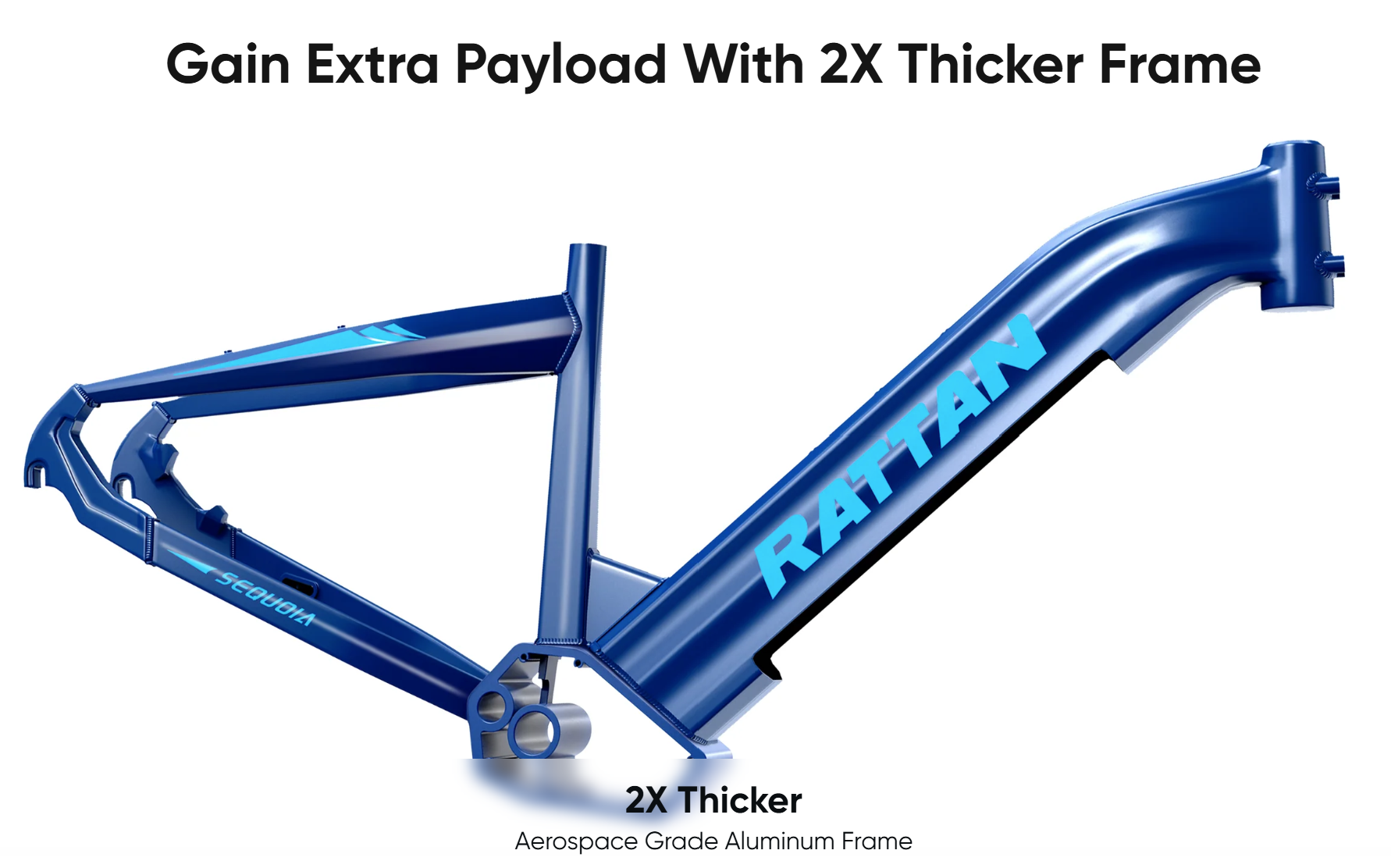

Strong and Heavy-Duty Frame

Built to handle the demands of both rugged exploration and rough backcountry trails, the Rattan Sequoia is engineered around a premium 6061 aluminum alloy frame built with state of the art hydroforming technology for double the reinforcement. This robust chassis features an approachable step-through architecture, making it incredibly easy to mount and dismount. The frame provides a rock-solid, stable foundation that ensures predictable handling and a heavy-duty payload capacity on every single journey.

Suspension

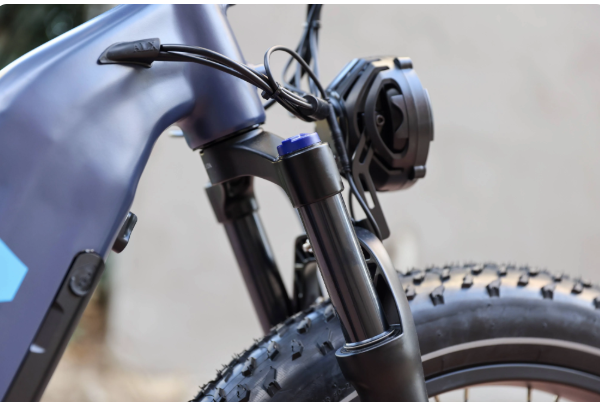

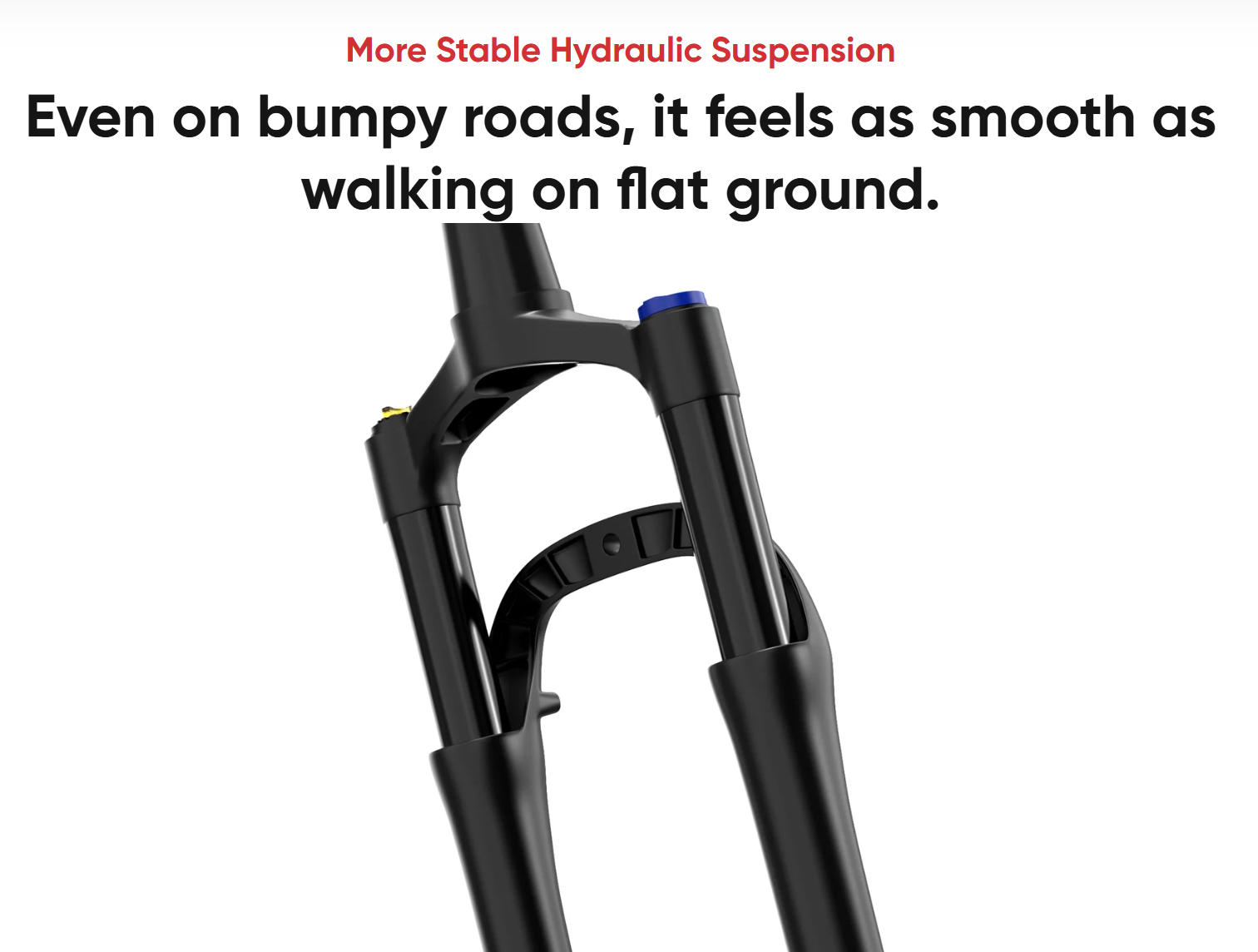

The Rattan Sequoia features an advanced front hydraulic suspension fork engineered to deliver top-tier comfort and stability across city pavement and rugged backcountry trails alike. The fork absorbs heavy impacts from roots and ruts, dampening the lumps and bumps of uneven terrain. Working together with its rugged 4-inch fat tires, this suspension setup maximizes ground traction, keeps you in total control, and provides an ultra-cushioned ride no matter how wild the terrain gets. For added versatility, it features a convenient remote lock-out function for smooth pavement riding.

Start me Up!

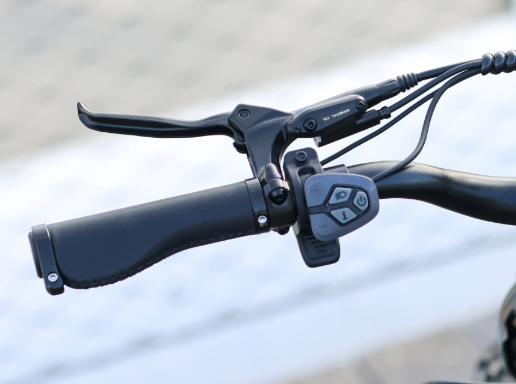

The Rattan Sequoia is ready to go with a single button tap on the handlebar control pad to power on the color LCD system instantly!

Is this a folding eBike?

No. The Rattan Sequoia does NOT fold.

Lights, Displays, and Safety Features

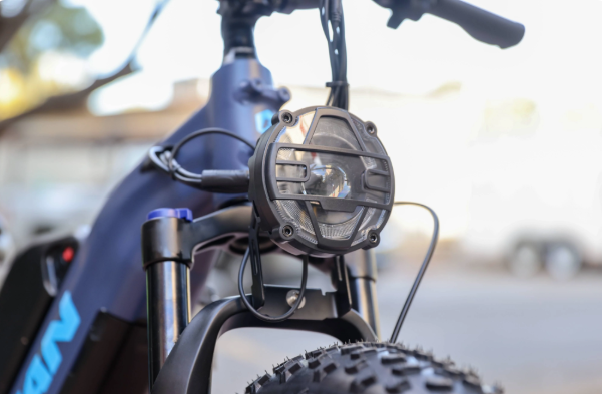

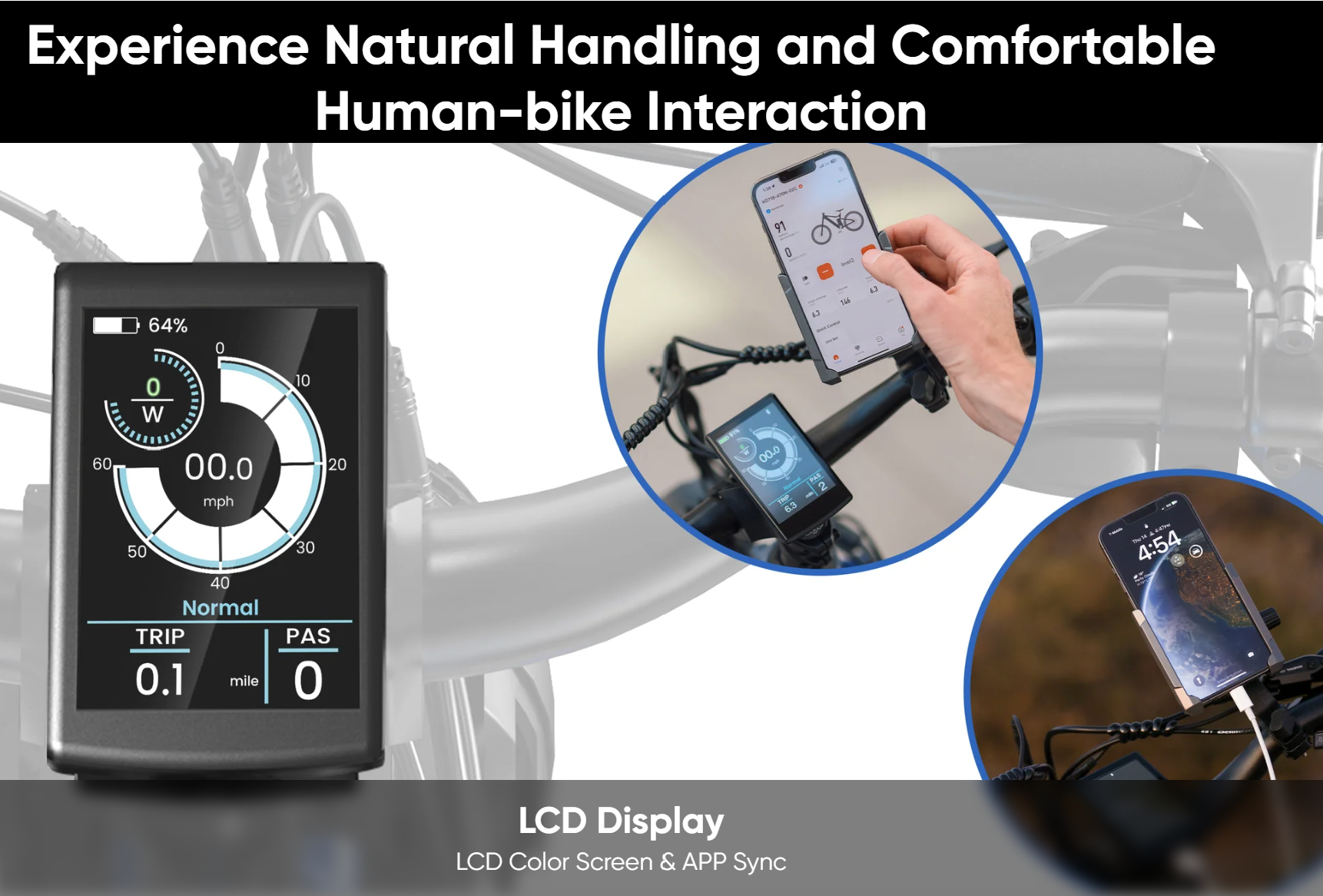

Engineered for both city streets and rugged trails, the Rattan Sequoia features a fully integrated safety setup to keep you protected on every ride. You'll stay completely up to date with a large handlebar-mounted color display that tracks your speed, watt output, and battery levels. Best of all, it features an automatic integrated front headlight and a responsive rear taillight with a brake light indicator function, maximizing your visibility to other riders.

450 Max Load Weight

The Rattan Sequoia supports a massive 450 pounds combining the rider and any cargo.

Is the Rattan Sequoia your size?

The recommended rider height for the Rattan Sequoia is 5'5" through 6'6". The frame features a low standover height of just 17.7 inches, making it incredibly accessible and easy to manage for a wide variety of riders.

Does the Rattan Sequoia have a sturdy kickstand?

Yes!
